Electric Bike Specifications
Battery
Bosch, PowerTube 540Wh
Bell
Spanninga Minibell Black
Brakes
Shimano, MT200, hydraulic disc
Cassette
Shimano, Nexus, 30T
Chain
Shimano, HG40, 118 links
Chainring
Narrow-Wide, 40 teeth
Charger
Bosch, 2Ah
Cranks
Stronglight, aluminium, 170mm, ISI
Display
Bosch, Purion 200, Smart System
Fork
SR Suntour, XCM32-ATB, NLO, preload adjustment & lockout function, 100mm travel

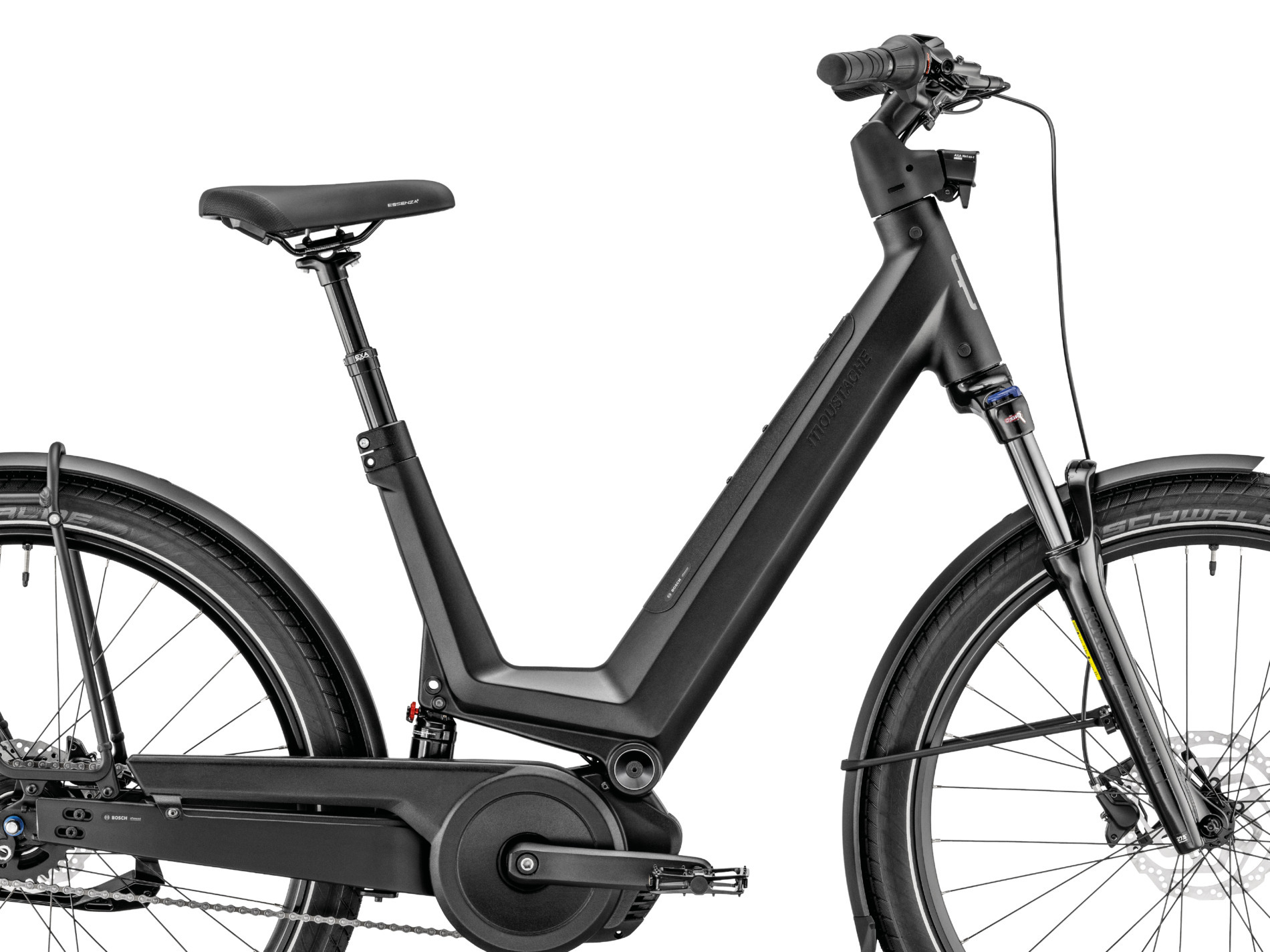

Frame
Mardi FS, aluminium, one-piece gravity cast, low stepover, increase rigidity thanks to internal ribs, unified rear swingarm, discreet internal cable routing, integrated battery and drive unit
Front Hub
Shimano, 32H, 9x100mm, QR (Quick Release)
GVWR
135kg
Grips
SB3, Ergonomic
Handlebar
Moustache, ergonomic, alloy, 660mm, 30° backsweep
Headset
Acros, AZF-699, sealed bearings, internal routing, blocklock
Kickstand
Moustache, adjustable
Lights
F AXA, NXT, 80 lux, powered by main battery R Spanninga, Presto2Guard, powered by main battery
Lock
Battery lock ABUS, Xplus, One-Key option. Framelock Axa Block XXL.
Motor
Bosch, Performance Line BDU34, Smart System, 75Nm
Mudguard
Moustache, alloy, double wall design, w/alloy stays
Rear Derailleur
Shimano, Nexus, 32H, 263% gear range, 10x135mm, nut
Rear Hub
Shimano, Nexus, 32H, 263% gear range, 10x135mm, nut
Rear Rack / Carrier
Moustache, alloy, suspended, removable QL3 lateral fixation, MIK HD platform
Rims
Alloy , 32 holes, 27.5', internal width 23 mm
Rotors
F Shimano, 180mm R Shimano, 160mm
Saddle
Selle Royal, Essenza + moderate wide
Seatclamp
Moustache, alloy, 34.9mm
Seatpost
EXA, 900i, dropper-post w/remote lever, 31.6mm, 150mm
Shifter
Shimano, Nexus SL-C7000-5, 5-speed
Shock
Moustache, Magic Grip Control 115, specific Air Shock with 2-position platform and dynamic control of rebound, build-in 165x38mm, 115mm travel
Stem
Moustache, alloy, adjustable, 110mm
Tyres
Schwalbe, Super Moto-X, 27.5x2.40, Reflective
Weight
31.4kg
