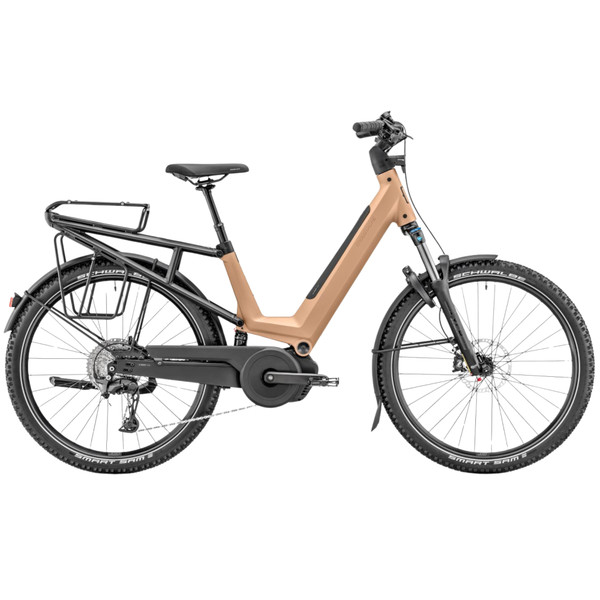

Electric Bike Specifications
Frame
Xroad FS, aluminium, one-piece gravity cast, low stepover, increase rigidity thanks to internal ribs, unified rear swingarm, discreet internal cable routing, integrated battery and drive unit

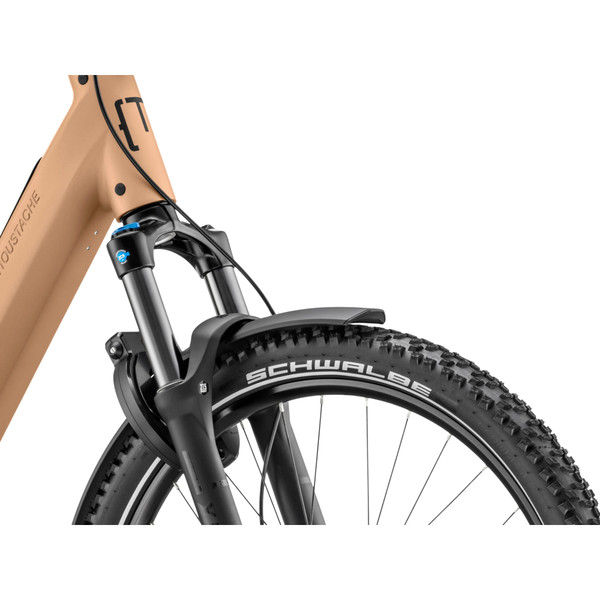

Fork
SR Suntour, XCR 34, lockout function, 120mm travel
Shock
Moustache, Magic Grip Control 115, specific Air Shock with 2-position platform and dynamic control of rebound, build-in 165x38mm, 115mm travel

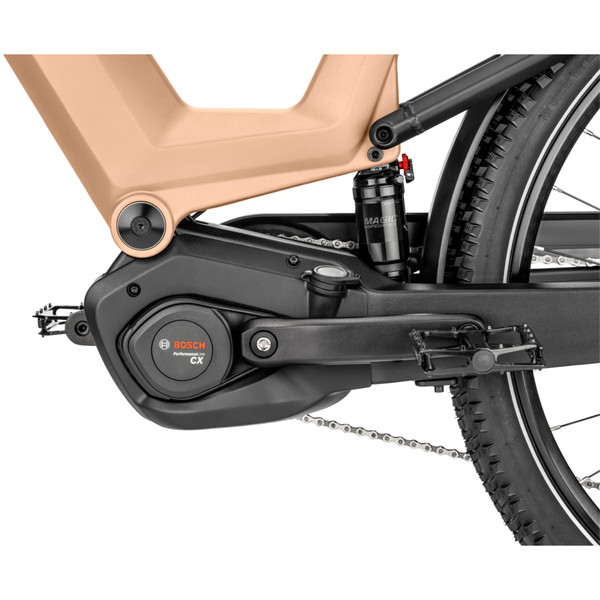

Motor
Bosch, Performance Line CX, Smart System, 85-100 Nm
Battery
Bosch, PowerTube 600Wh, Smart System
Autonomy
135km
Charger
Bosch, 4Ah
Display
Bosch, Kiox 500, Smart System
Remote
Bosch, LED remote Bluetooth
Rear Derailleur
Shimano, CUES, RD-U6020-11, 11-speed
Chainring
Narrow-Wide, 38 teeth
Cassette
Shimano, CUES, CS-LG400 11-speed, 11-45T
Chain
Shimano, LG500, 130 links
Shifter
Shimano, CUES, SL-U6000-11R, 11-speed
Cranks
Stronglight, aluminium, 170mm, ISI
Front brake
Magura, MT Thirty, hydraulic disc, 4 pistons
Rear Brake
Magura, MT Thirty, hydraulic disc, 2 pistons
Front Rotor
Magura, MDR-C, 180mm
Rear Rotor
Magura, MDR-C, 180mm
Front Hub
Shimano, 32H, 15x110mm, thru axle
Rear Hub
Shimano, 32H, 15x100mm, thru axle
Front rim
Alloy , 32 holes, 27.5', internal width 27 mm
Rear rim
Alloy , 32 holes, 27.5', internal width 27 mm
Front tyre
Schwalbe, Smart Sam, 27.5x2.35, reflective
Saddle
Selle Royal, Essenza + moderate
Seatpost
EXA, 900i, dropper-post w/remote lever, 31.6mm, 75mm
Seatclamp
Moustache, alloy, 34.9mm
Handlebar
Moustache, ergonomic, alloy, 660mm, 30° backsweep
Stem
Moustache, alloy, adjustable, 65mm
Headset
Acros, AZF-699, sealed bearings, internal routing, blocklock
Grips
SB3, Ergonomic
Front light
AXA, NXT, 80 lux, powered by main battery
Rear light
Spanninga, Presto2Guard, powered by main battery
Horn
Spanninga Minibell Black

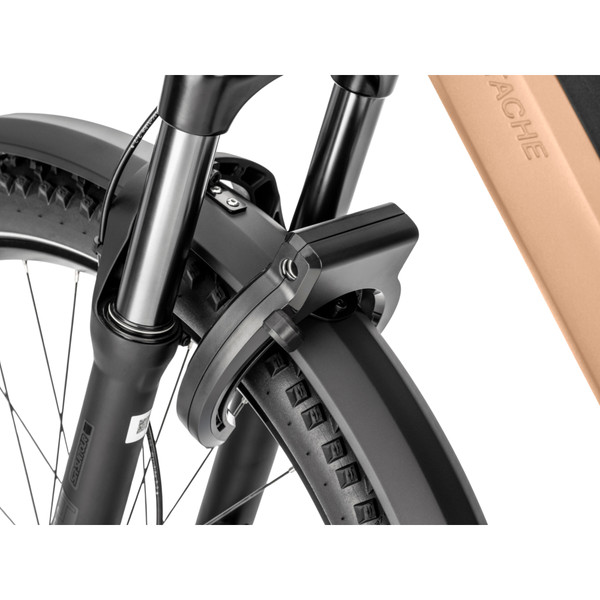

Lock
Battery lock ABUS, Xplus, One-Key option. Framelock Axa Block XXL.
Kickstand
Moustache, adjustable
Mudguard
Moustache, alloy, double wall design, w/alloy stays
Carrier
Moustache, alloy, light, removable QL3 lateral fixation. MIK platform option.
Pedals
alloy platform with reflectors
Frame Sizes
S (1,55 - 1,70m) M (1,65 - 1,85m) L (1,80 - 1,95m)
Color
Earth metal
Weight
27.4kg
GVWR
160kg
Warranty
5 years frame and fork Moustache Bikes - 2 years motor, battery
