Electric Bike Specifications
Battery
Bosch 545 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity
Bell
Pitch Plus, brass
Bike Size
191 × 68 × 116 cm (75.2 × 26.8 × 45.7 in)
Brake Levers
Magura MT5 e-stop, hydraulic, with brake light sensor
Brakes
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Chain
Gates Carbon Drive CDX belt
Chainguard
Tern GSD, full chain cover
Charger
Bosch 220V, 4A
Crankset
Tern GSD, Gates CDX CNC machined beltring

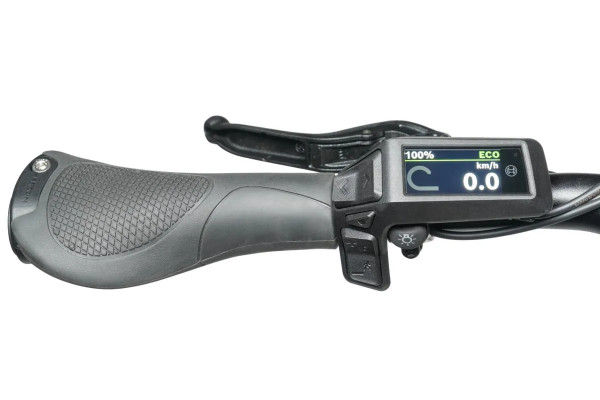

Display
Bosch Purion 200, connectivity with Bosch eBike Flow IOS/Smartphone app
Fenders
F: Aluminum R: GSD wheel guard
Fork
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 50 mm travel, EFBE approved: 210 kg
Frame
Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg
Frame Lock
ABUS or AXA, keyed-alike with Bosch battery
Frame Size
One size - universal
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Handlepost
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
Headset
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Hub (front)
Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
Hub (rear)
Enviolo Heavy Duty, 380% continuously variable range, Boost
Kickstand
Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
Lights
Ignis Headlight ultra wide low beam, RearStop Brake Light, Always on
Luggage Socket
Combo Mount
Max Gross Vehicle Weight
210kg
Max Rider Weight
130kg
Motor
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU)
Pedals
Urban with non-slip surface, sealed bearings

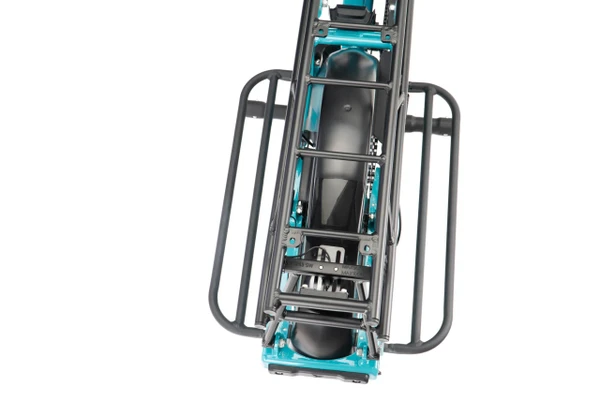

Rack
Atlas G, 100 kg (220 lb) capacity
Range
545 Wh: 45-98 km (28-61 mi); 1090 Wh: 90-196 km (56-122 mi)
Rims
Tern Atlas, ultra wide 36 mm, dual reinforced joint
Saddle
Tern GSD by Velo
Seatpost
Tern VLT (Very Large Telescope) with LightAction levers
Shifters
Enviolo, Twist
Stem
Tern Andros, adjustable, forged construction, patented technology
Suggested Rider Height
150 - 200 cm (59.1 - 78.7 in)
Tyres
F: Schwalbe Big Ben Plus, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
Weight
36.3kg
Wheels
Tern Atlas, heavy duty cargo wheel
