Electric Bike Specifications
Autonomy
Up to 77 miles
Battery
Bosch, PowerTube 500Wh, vertical, Smart System
Brakes
Shimano, MT200 or Alhonga HJ-472, hydraulic disc brake
Carrier
Moustache, alloy, removable QL3 lateral fixation, MIK HD platform
Cassette
Shimano, CUES, CS-LG300 10-speed, 11-39T
Chain
Shimano, CN-LG500, 120 links
Chainring
Narrow-Wide, 40 teeth
Charger
Bosch 2Ah
Colours
Titanium glossy, Petrol
Cranks
Moustache, aluminium, 170mm

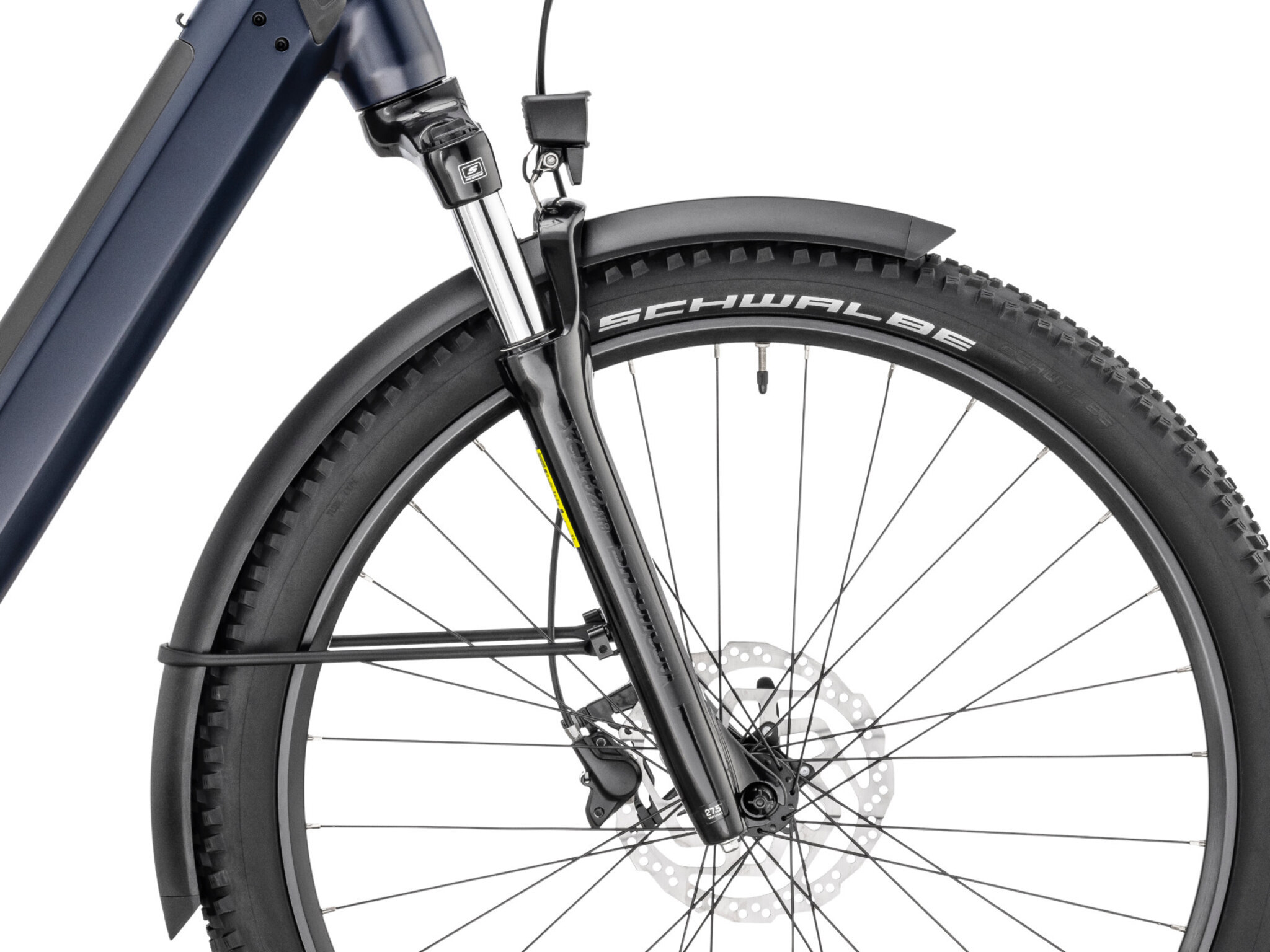

Fork
SR Suntour, XCM32-ATB, NLO, preload adjustment & lockout function, 100mm travel

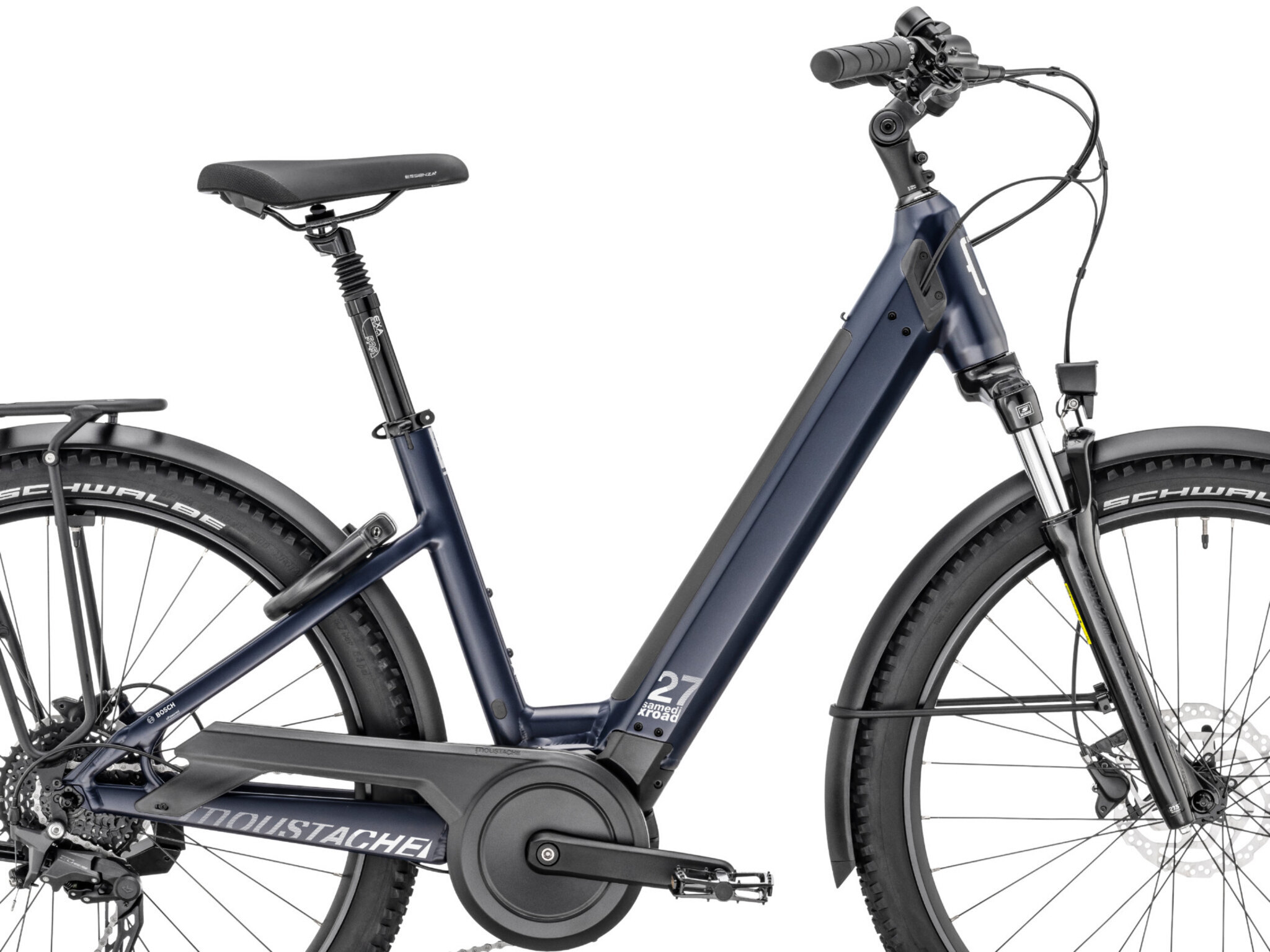

Frame
Xroad, 6061 T4-T6 alloy, variable thickness hydroformed tubes, Bosch PowerTube battery integration (vertical), integrated cable routing
Frame Sizes
42cm (1,55 - 1,70), 47cm (1,68 - 1,83), 53cm (1,80 - 1,95), 58cm (1,90 - 2,05)
Grips
Ergonomic, dual-density
Gross Vehicle Weight Rating
135kg
Handlebar
Moustache, ergonomic, alloy, 680mm, 25° backsweep
Hubs
Shimano, 32H, 9x100mm, QR (Quick Release), Rear = Shimano, 32H, 9x135mm, QR (Quick Release)
Kickstand
Moustache, adjustable
Lights
AXA, NXT, 30 lux, powered by main battery, rear = Spanninga, Presto2Guard, powered by main battery

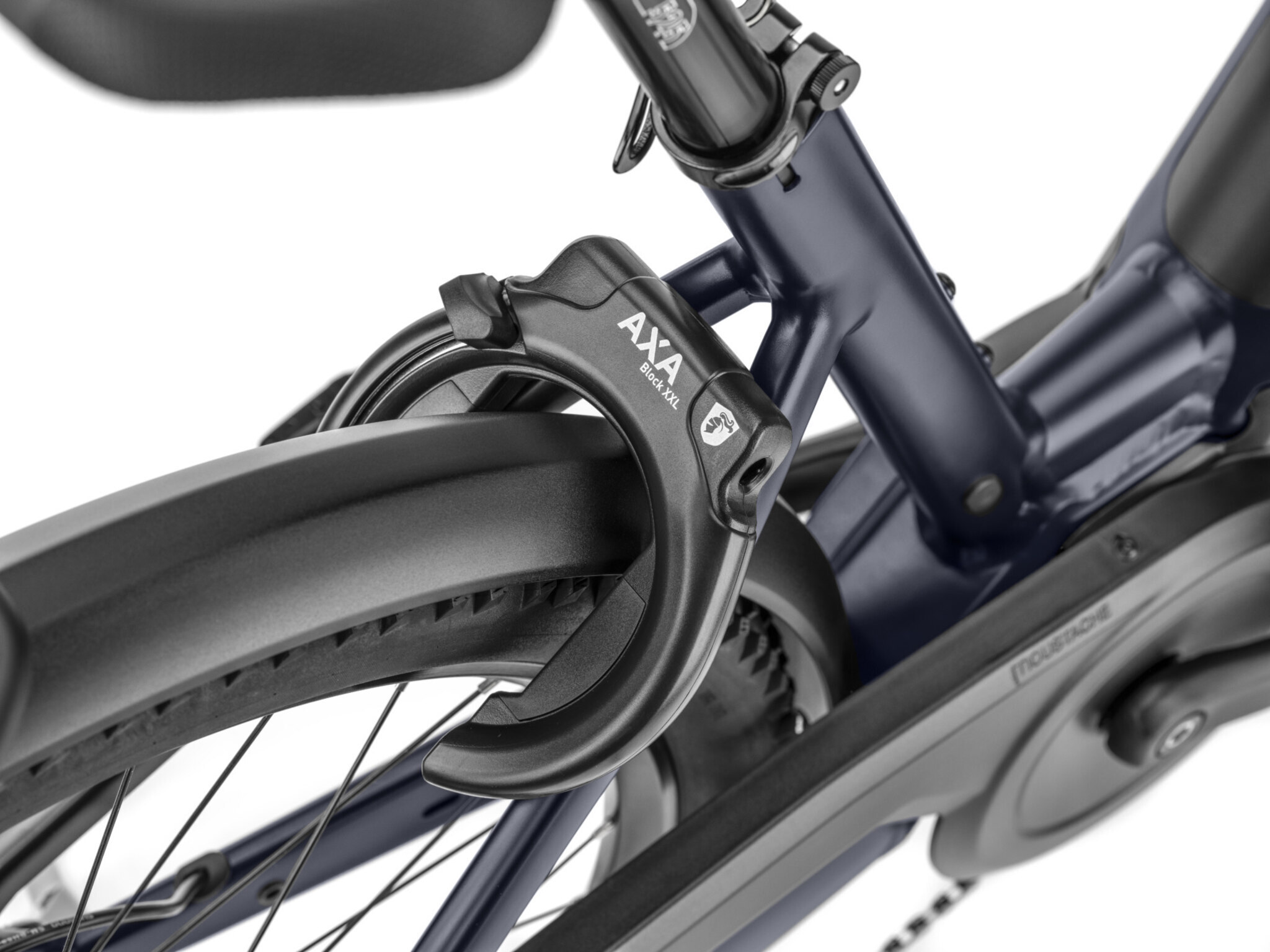

Lock
AXA, Block XXL, same key for framelock & battery lock

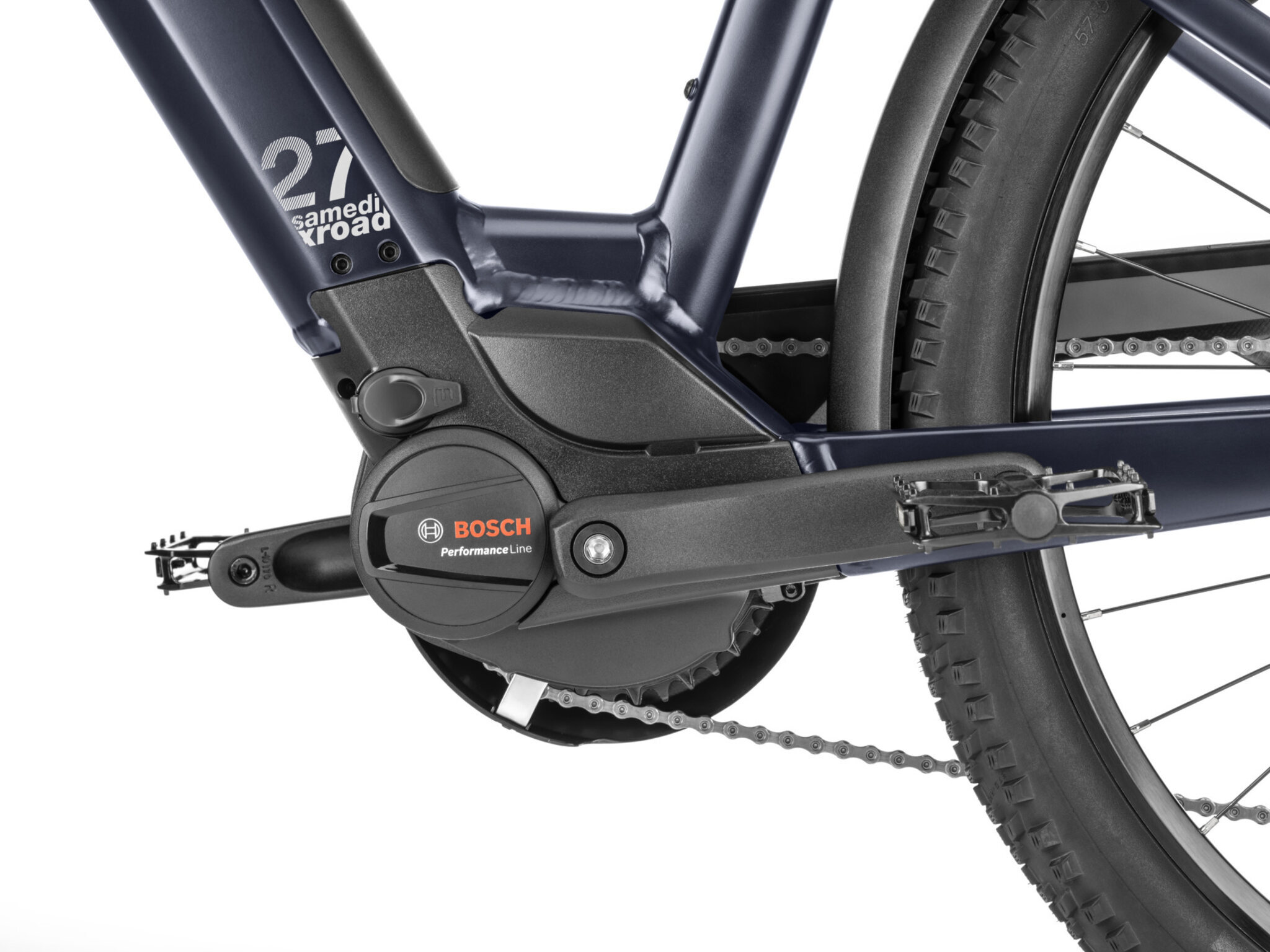

Motor
Bosch, Performance Line, 250W, Smart System, 75Nm
Mudguard
Moustache, alloy, double wall design, w/alloy stays
Pedals
alloy platform with reflectors
Rear Derailleur
Shimano, CUES, RD-U6020, 10-speed
Remote
Bosch, Purion 200, Smart System, compact, color screen, navigation, « Walk assist »
Rims
Moustache, asymmetric, alloy 6061E, welded, 32 holes, 27.5", internal width 23mm
Rotors
Shimano, 180mm or Alhonga, 180mm, Shimano, 160mm or Alhonga, 160mm
Saddle
Selle Royal, Essenza + moderate
Seatclamp
Moustache, alloy, 34.9mm
Seatpost
Suspension, alloy, 31.6mm, 350mm, 40mm travel
Shifter
Shimano, CUES, SL-U6000-10R, 10-speed
Stem
Moustache, alloy, adjustable, 90mm
Tyres
Schwalbe, Smart Sam, 27.5x2.25
Warranty
5 years frame and fork Moustache Bikes - 2 years motor, battery
Weight
26.2kg
