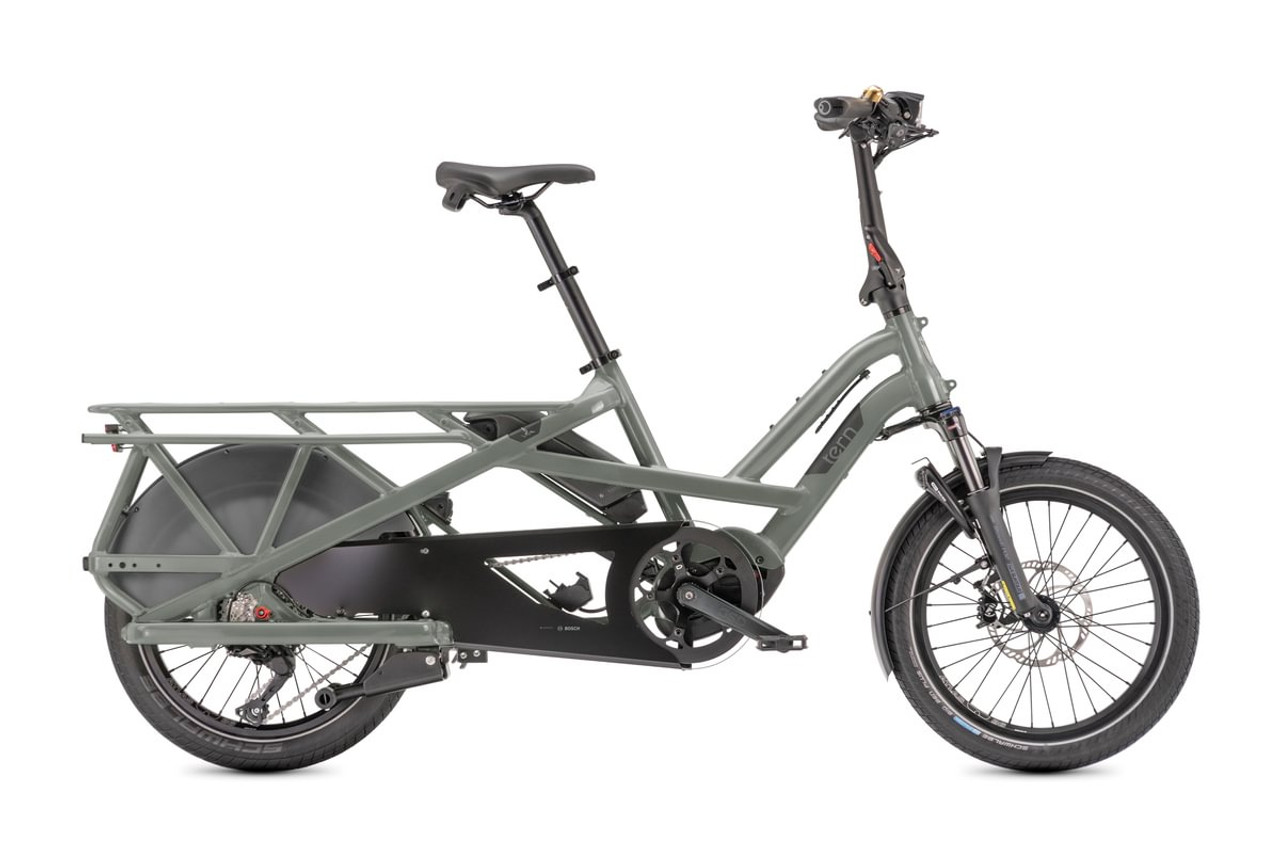

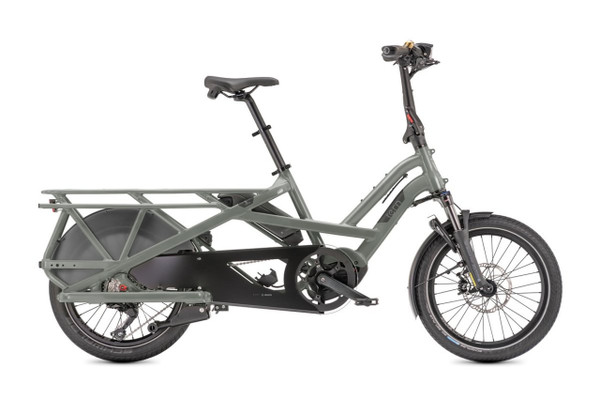

Tern GSD S10 LR Gen2
£5,100.00
About the Tern GSD S10 LR
The Tern GSD S10 LR comes complete with the Bosch Cargo Line Cruise motor (Generation 4). A coil spring suspension fork arrives for this year, adding comfort over bumps and potholes, with Magura sport brake pads accounting for 200% better durability whatever the terrain.

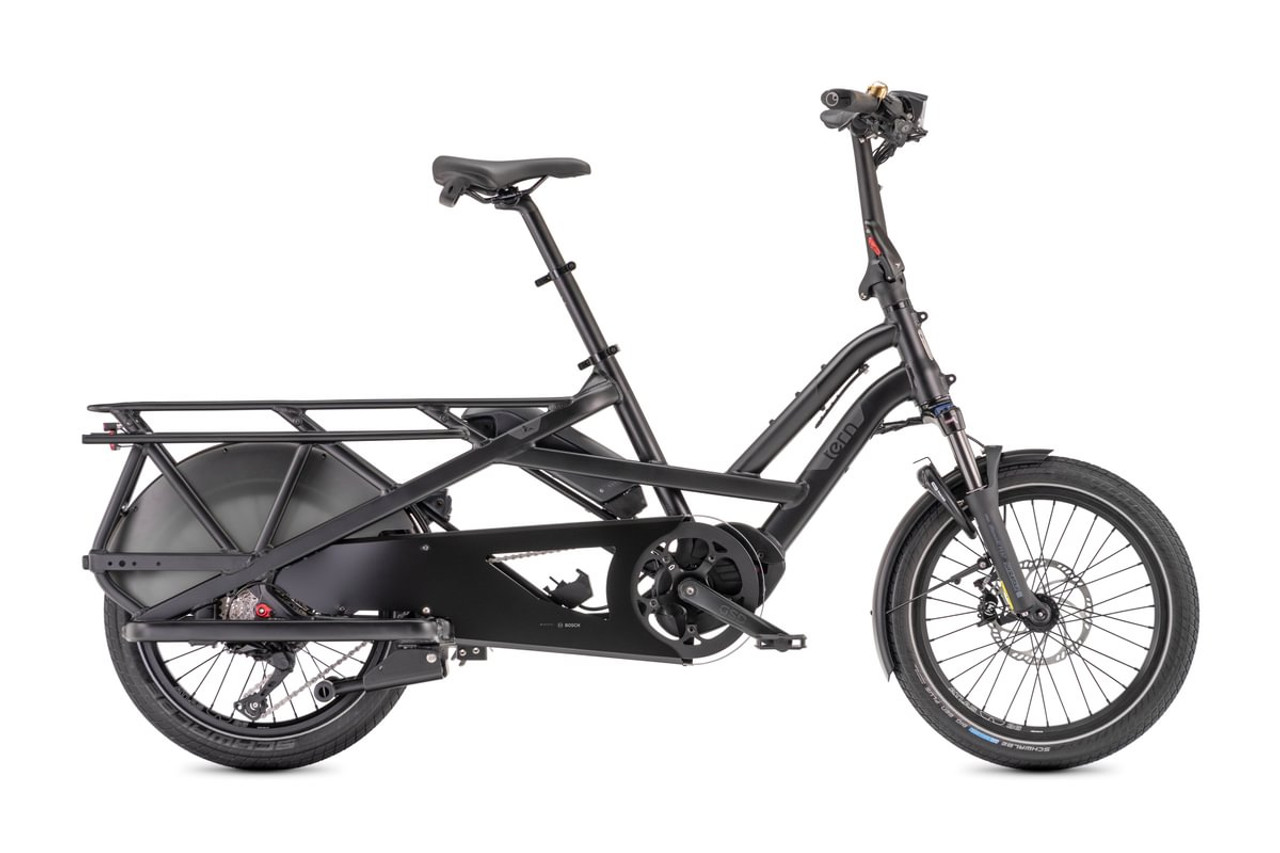

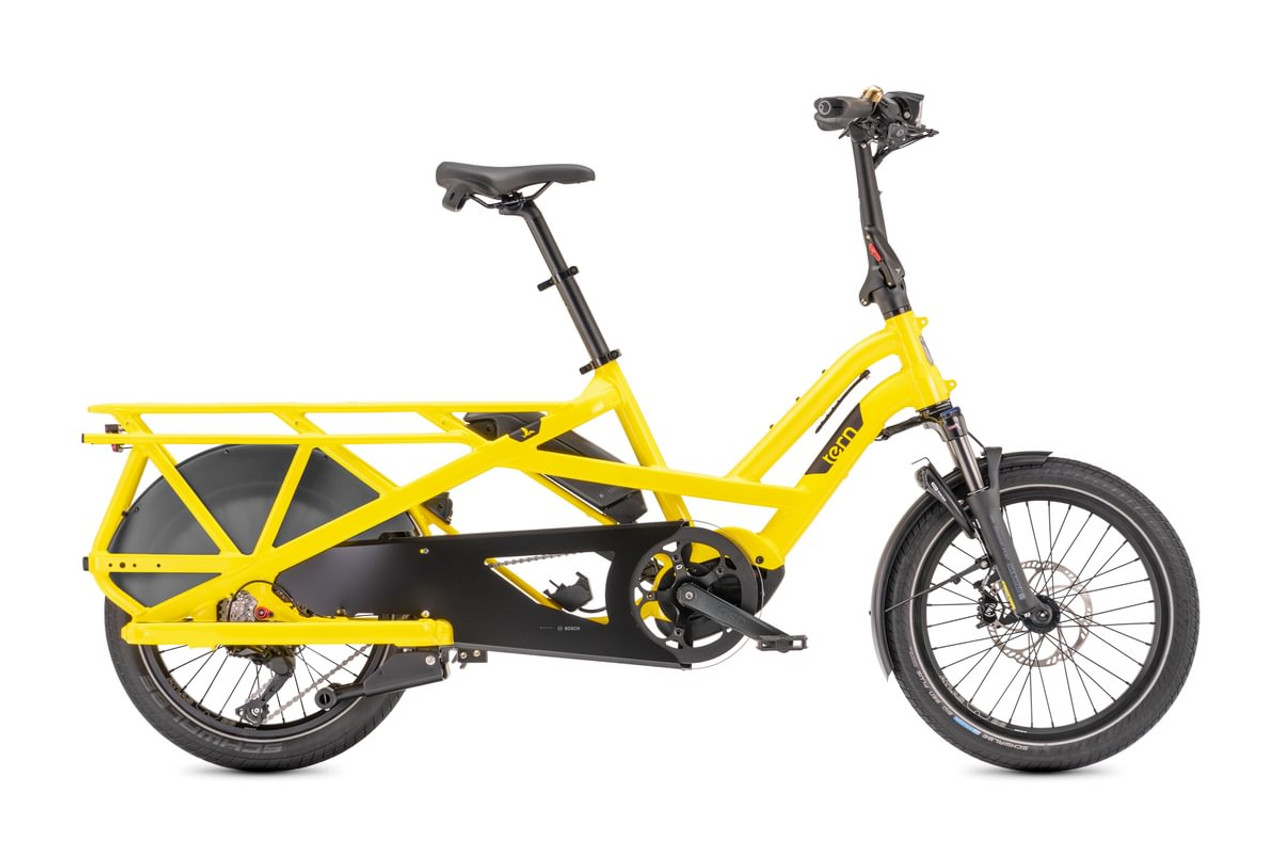

The bike is 6cm longer, allowing for two Yepp Maxi seats to be fitted with a new Clubhouse+. Now with tabasco or matt black colour options, the Tern GSD S10 LR puts you and your precious cargo first.
What the expert says
'"This is a longtail cargo bike running on 20" wheels. It's available in a single frame size, and the adjustable stem and double telescopic seatpost mean it'll accommodate just about anyone. The geometry is slightly tweaked for the new version, with a slightly more relaxed seat tube angle giving a longer cockpit for taller riders." eBike Tips'
Why Tern
With the world on the verge of auto-mobility, driverless cars and ride-sharing, and with the arrival of electric vehicles, it is Tern’s ambition to help drive this force of change with a collection of electric bikes that take hills, headwinds, traffic and bike thieves out of commuting.
As an urban mobility business that focuses specifically on the compact ecargo and folding sector, Tern’s range of bikes give an unrelenting focus on ride quality and are ideal for commuting and storage purposes.
Whether you have children to take on the school run, goods that need transporting or if you’re loading up your bike for a weekend adventure, look no further than Tern.
Add Hidden Text Here Show Less

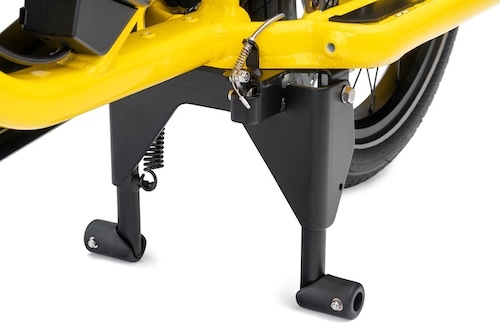

Atlas Stand
The best in-class kick stand available, strong and stable and has a patented locking feature for safety. A button on the handlebar for you to be able to release the bike from a stand still.

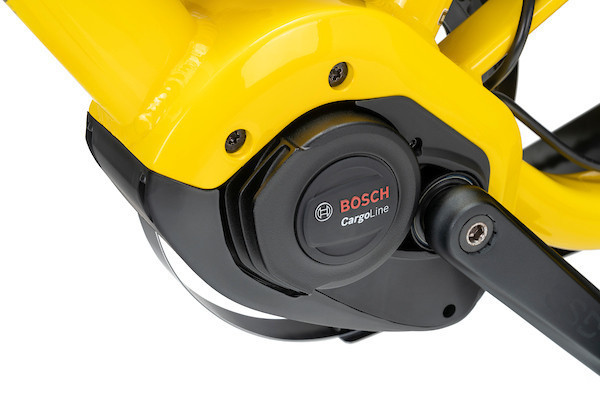

Bosch Cargo Line Motor
Upgraded to the Bosch Cargo Line Generation 4 motor from the Generation 2 Performance Line motor. 85Nm of torque and up to 400% of pedal assistance. The Bosch 400Wh battery powerpack comes as standard with the LR, fitted centrally.
Longer Frame

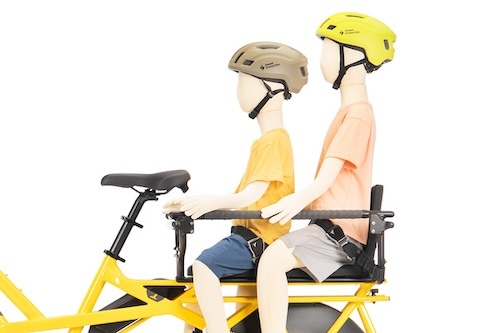

The bike is also slightly longer by 6 cms allowing for two Yepp Maxi seats to be fitted in the new Clubhouse+.
Adjustable for all riders
The GSD is it's one size fits all, with an adjustable stem and clever double seat-post, the GSD will fit riders between 4ft11 and 6 ft6 comfortably.

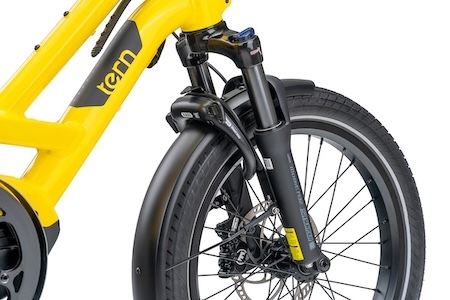

GSD Suspension fork
New for the generation 2 GSD is the front suspension fork which is specifically built for the GSD to comfortably carry 200kg worth of load.

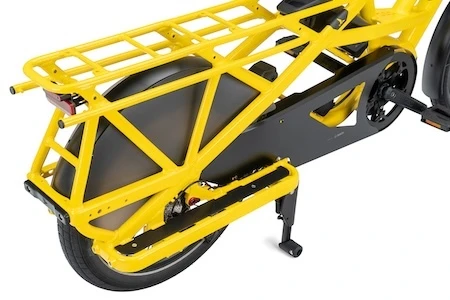

Frame integrated rack
There are a plethora of modular rack options, so you can customise the bike to suit your needs. Be that carrying kids or different types of cargo.
Specifications
Weight
34kg
Battery
Bosch Dual Battery system, 400 Wh/900 Wh
Brakes
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Tyres
F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Saddle
Tern GSD by Velo, with rear handle

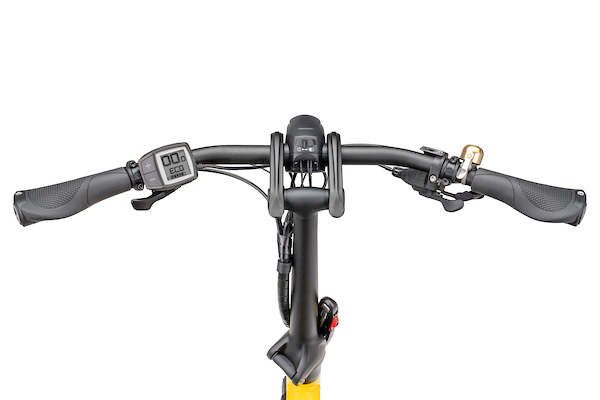

Display
Bosch Purion, 4 mode selectable, walk assist
Frame
Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
Motor
Bosch Cargo Line, 400% Assist, 85 Nm Torque
Rims
Tern Atlas, ultra wide 36 mm, dual reinforced joint
Suspension Fork
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
Chain
10 spd, DHT for eBike, GST corrosion resistant coating
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Grips
Ergon
Hubs
Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing, Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
Stem
Tern Andros, adjustable, forged construction, patented technology
Pedals
Urban with non-slip surface, sealed bearings
Rack
Frame integrated, heavy duty design

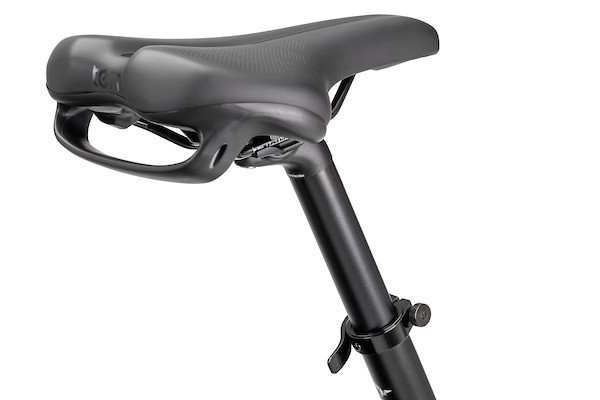

Seatpost
Tern Telescope, 34.9/30.9 mm, 2014-AL
Crankset
Tern GSD custom, forged 6061-AL DH crankarm
Kickstand
Atlas Lockstand, w/ remote unlock, patented technology
Lock
ABUS, keyed-alike with Bosch battery
Shifter
Jagwire LEX-SL, slick treatment, alloy ferrules
Lights
Tern Valo Direct, 190 lumens
Mudguards
Integrated Wheel Guard, AL6061, w/ Side Skirt
Gear System
Shimano Deore, 1 x 10 spd
Dimensions
Folded: 176 x 40.5 x 83 cm
Headset
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
