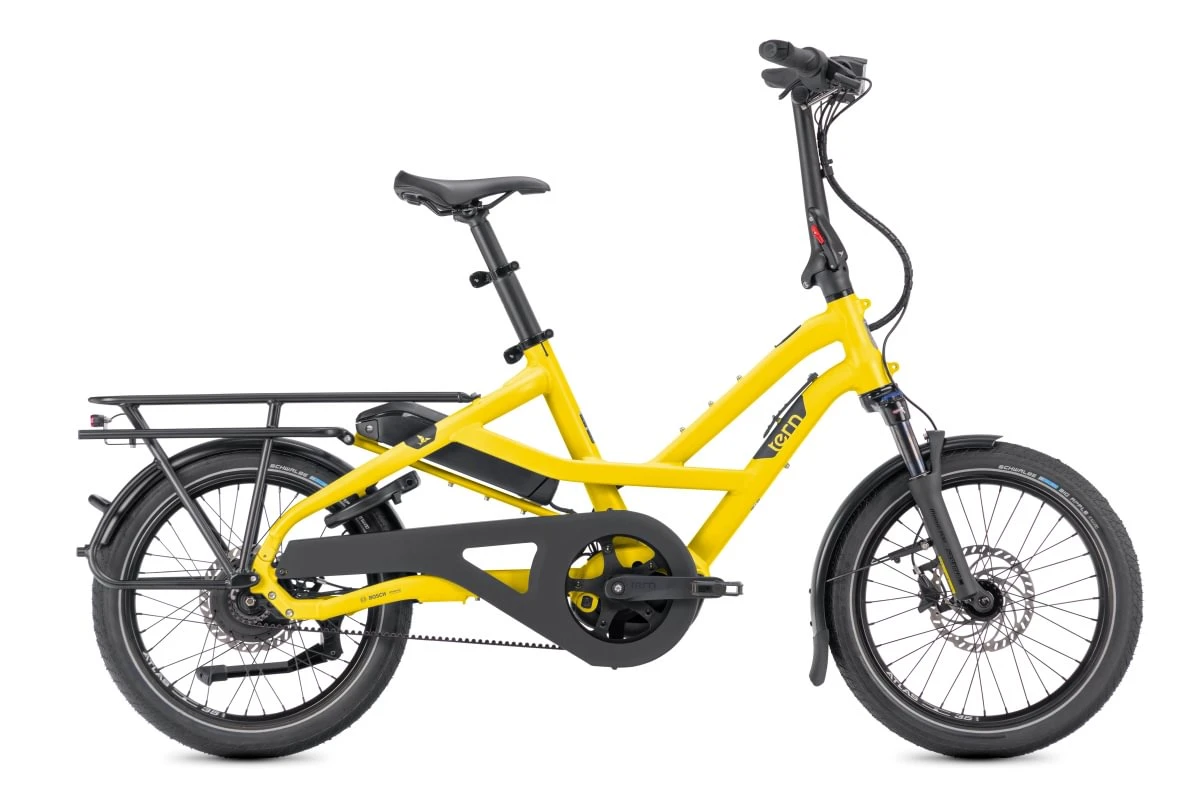

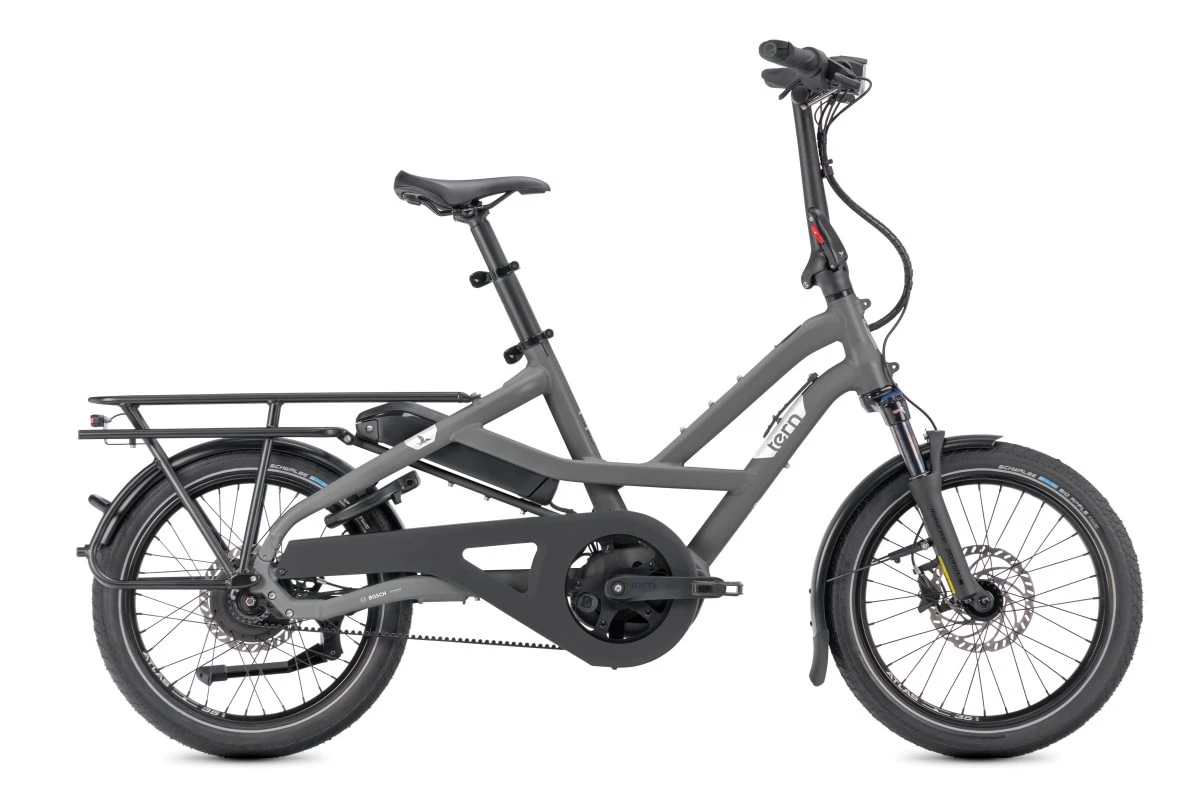

Electric Bike Specifications
Battery
Bosch PowerPack 545
Bell
Pitch Plus, brass
Bike Size
174 × 112.5 × 68 cm (68.5 × 44.3 × 26.8 in)
Brake levers
Magura, hydraulic disc
Brakes
Magura, hydraulic disc, 180 mm rotor
Cassette
Gates CDX, precision CNC machined cog
Chain
Gates Carbon Drive CDX belt
Chainguard
Tern Custom, full chain cove
Charger
Fast Charging, 220V, 4A (EU)
Crankset
Tern HSD, Gates CDX CNC machined beltring
Display
Bosch Purion 200, connectivity with Bosch eBike Flow app, electronic bike lock
Fenders
Aluminum, stainless hardware
Fork
Suntour custom for Tern, 32 mm stanchions, Thru-axle, EN17860 certified: 190 kg
Frame
Tern HSD, 6061-AL, patented design, EN17860 certified: 190 kg
Frame lock
AXA, keyed-alike with Bosch battery
Front hub
Novatec, Thru-axle, sealed bearings
Front light
Tern Valo Direct, 190 lumens
Handlebar
Tern Sweep, 6061-AL, Tern Andros adapted
Handlepost
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
Headset
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Kickstand
Ursus, rear mount
Luggage socket
Tern Combo Mount
Max gross vehicle weight
190 kg (418.9 lb)
Max rider weight
130 kg (286.6 lb)
Motor
Bosch Performance (BDU34, 340% Assist, 75 Nm Torque, max speed 25 km/h (EU)
Rack
Atlas H rack, 6 point mounting, ISO 11243:2023 certification: 80 kg
Range
545 Wh: 56-107 km (35-67 mi

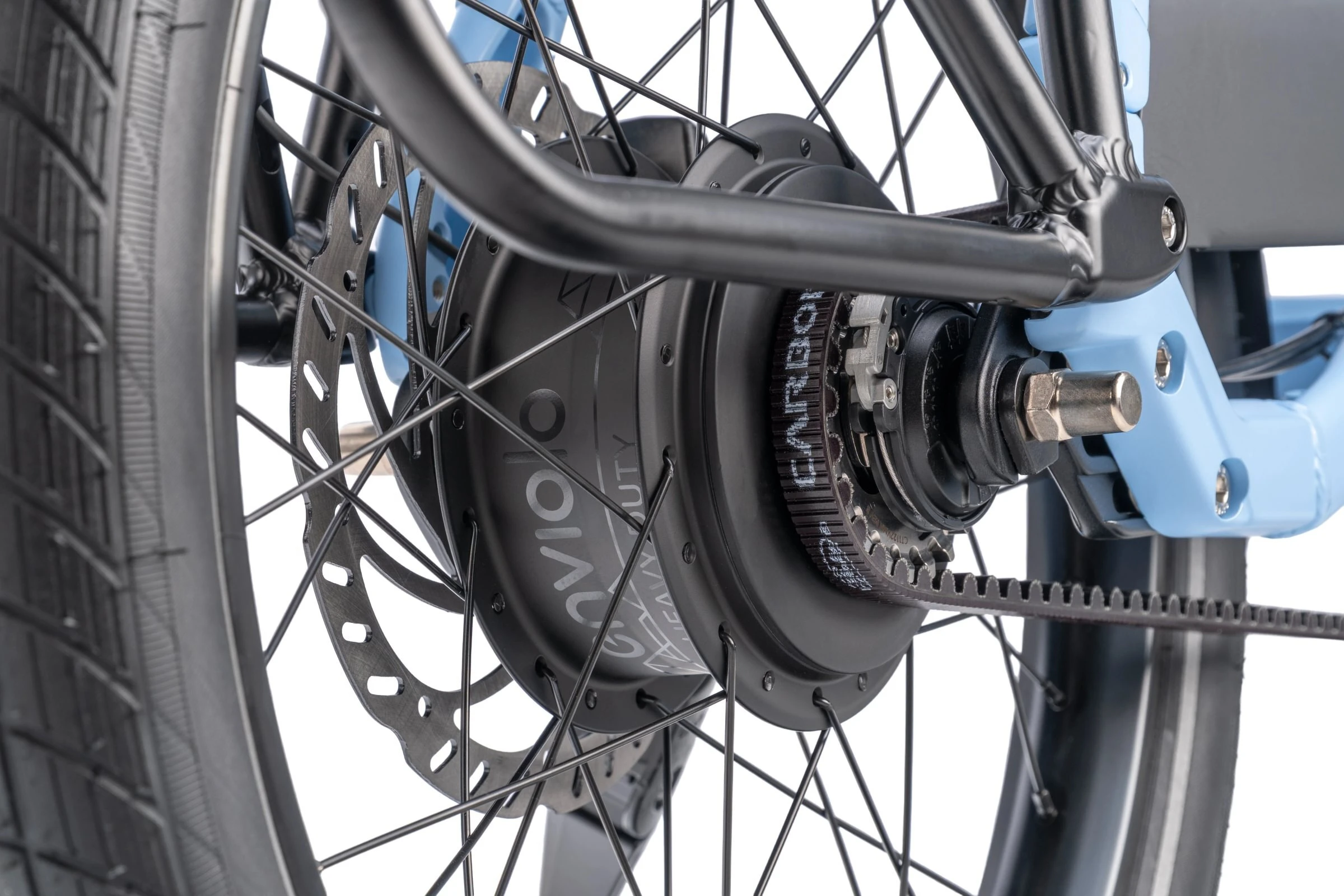

Rear hub
Enviolo Heavy Duty, 380% continuously variable range
Rear light
Herrmans LED
Seatpost
Tern VLT 41/34.9mm, with LightAction levers
Spokes
Stainless steel
Standover height
48.5 cm (19.1 in
Stem
Tern Andros, adjustable, forged construction, patented technology
Tyres
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Weight
28.9 kg (63.7 lb)
Wheels
Tern Atlas H, cargo wheel
